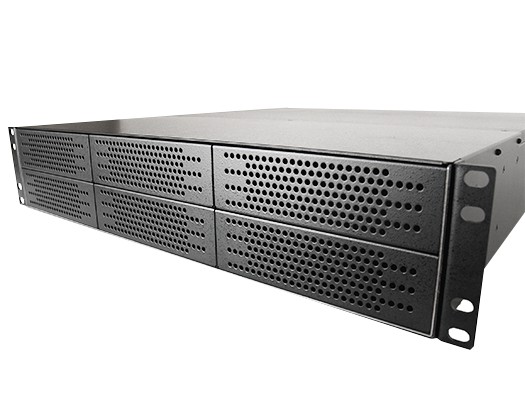

2U 6-Bay 5.25" Compact Server Chassis
Model：U2006N0000
• Dimension : 481mm x 495mm (D) x 2U
• M/B : ATX ( 10” X 12”)
• Drive Bays : 5.25” x 6
• PSU Type : 2U Single PSU ,2U Redundant PSU
Welcome any customized modification
Add to inquiry
• M/B : ATX ( 10” X 12”)
• Drive Bays : 5.25” x 6
• PSU Type : 2U Single PSU ,2U Redundant PSU
Welcome any customized modification
Features
► Only 19.5” Depth
► High Capacity – 5.25” exposed drive x 6
► High Cooling effect
► Easy Assembly & Service
U-Rack's 2U rack chassis defies limitations with its shallow 19.5" depth, maximizing space efficiency without compromising capacity. It boasts six 5.25" exposed drive bays, offering ample storage for demanding applications. Despite its compact size, cooling performance is exceptional, ensuring optimal operating temperatures for your components. The intuitive design prioritizes easy assembly and service, simplifying maintenance and upgrades. Choose between 2U single or redundant PSU options for added flexibility. With U-Rack's 2U rack chassis, experience a perfect blend of space-saving design and powerful functionality.
Specification
| Model NO. | U2006N0000 |
| Standard | EIA-RS310D |
| Dimension (W x D x H) |
481mm x 495mm x 2U (18.9” x19.5” x 3.5”) |
| Material | SGCC |
| M/B | ATX ( 10” X 12”) |
| Drive bays | 5.25” x 6 |
| Coolings | 2x 8cm cooling fans (middle) |
| Controls | Power on/off |
| Slots | 3 or 7 (low profile) |
| Power Supply | 2U Single PSU (200 x 100 x 70mm) (L x W x H) Or 2U Redundant PSU |
Accessories
- URK-104SA 4x 2.5” SAS/SATA HDD/SSD in 1 x 5.25” Bay
- URK-106SATA 6x 2.5” SAS/SATA HDD/SSD in 1 x 5.25” Bay
