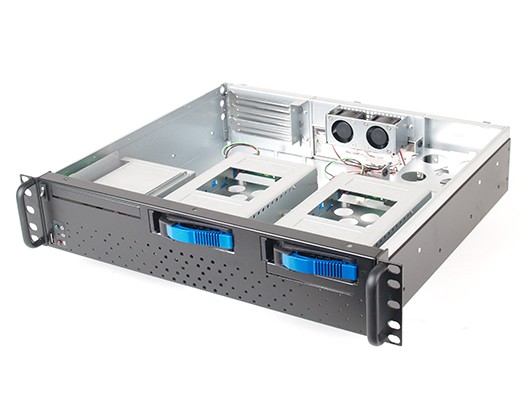

2U Short Depth 2-bay Tool-less Compact Server Chassis
Model：U2004M2000
• Dimension : 481mm x 380mm (D)x 2U
• M/B : ATX ( 12” X 9.6”)
• Drive Bays : 3.5”hot-swap x 2, internal 3.5”x 2, slim ODD x 1, slim FDD x 1
• PSU Type : 1U Single PSU
Welcome any customized modification
Download
Add to inquiry
• M/B : ATX ( 12” X 9.6”)
• Drive Bays : 3.5”hot-swap x 2, internal 3.5”x 2, slim ODD x 1, slim FDD x 1
• PSU Type : 1U Single PSU
Welcome any customized modification
Features
► Unique outward appearance design
- Industrial grade aluminum drive tray handle device
- Defer to the customer demand change color of drive tray handle
- Recognize the Raid position using rubber cap
- Fiber optical drive tray status indicator
► Effective cooling system
- 2 x 4cm cooling fans
- 1 x 9cm front-mounted blower fan optimize airflow
► Firm main body structure & maximum drive capacity
- Durable handle may draw out more than 10,000 of times
- 3.5”hot-swap x 2, internal 3.5”x 2, slim DVD x 1, slim FDD x 1
- single / multilane SATA / SAS backplane option
- Front access USB connector x 1
► Easy installation and maintenance
- Support up to ATX ( 12” x 9.6”)
- Manage Cable in order
- provide elbowroom assembly
- Options for 3 x PCI Slot or 7 x low profile rear plate
► 2U hot swap chassis Model NO : U2004M2
Specification
| Model NO. | U2004SA2000 |
| Standard | EIA-RS310D |
| Dimension (W x D x H) |
481mm x 380mm x 2U (18.9” x 15” x 2U) |
| Material | SGCC / 1.2mm thickness |
| Backplane | SATA 3G, SAS, SATA Multilane |
| M/B | ATX ( 12” X 9.6”) |
| Drive bays | 3.5”hot-swap x 2, internal 3.5”x 2, slim ODD x 1, slim FDD x 1 |
| Coolings | 1 x 9cm blower (front) + 2 x 4cm fans (rear) |
| Indicators | Power, HDD LED |
| Controls | Power on/off, system reset, USB port x 2 |
| Expansion | 3 x PCI Slot or 7 x low profile |
| Power Supply | 1U single PSU |
