2U 8-Bay Storage Server Rackmount Chassis (12G)

3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-1
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-2

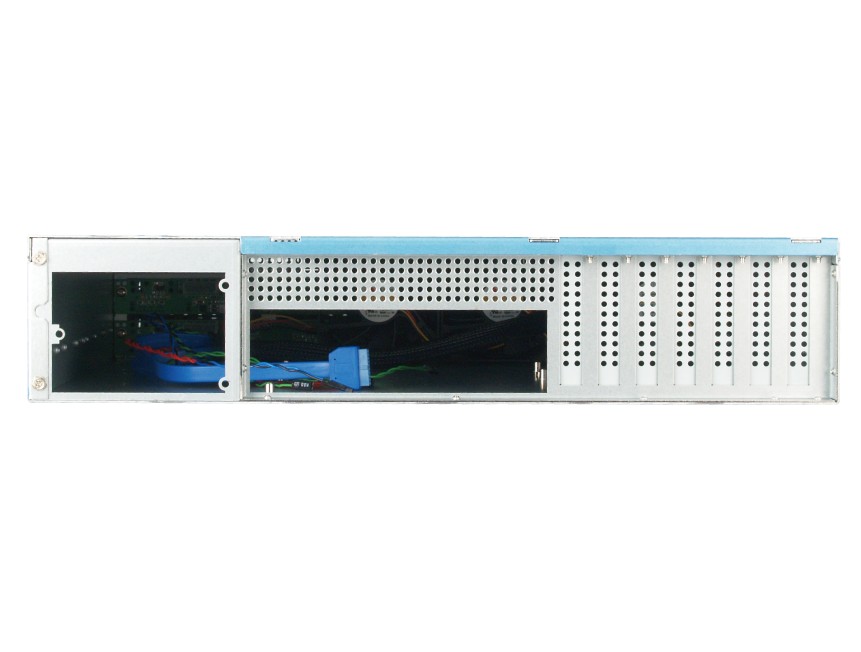

3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-3
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-4
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-5
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-1
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-2
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-3
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-4
3.5-Chassis-for-Storage-U20009H2000-12G-(SFF-8654)-5
Model：U20009H2000-12G-(SFF-8654)
• Dimension : 482mm x 578.7mm (D) x 88mm(2U)
• M/B : ATX /microATX ( 12” X 10.5”)
• Drive Bays : 3.5”(or 2.5")hot-swap x 8 (SATA/SAS-12G) , 3.5” HDD x 1, 2.5” • HDD x 1, Slim ODD x 1
• PSU Type : 2U single/Redundant PSU
• ROHS cmpliance

Welcome any customized modification
Add to inquiry
Features

► Unique outward appearance design

  • Industrial grade drive tray handle device
  • Defer to the customer demand change color of drive tray handle
  • Recognize the Raid position using rubber cap
  • drive tray status indicator(power/active)

► Effective cooling system

  • 3 x 8cm hot-swappable system cooling fans with status monitor

► Firm main body structure & maximum drive capacity

  • Durable handle may draw out more than 10,000 of times
  • 3.5"(or 2.5")hot-swap x 8 (SATA/SAS-12G),3.5" HDD x 1 , 2.5" HDD x 1, Slim ODD x1
  • SATA / SAS-12G SFF-8654 backplane
  • Front access USB connector x 2

► Easy installation and maintenance

  • Support up to EATX ( 12” x 10.5”)
  • Manage Cable in order
  • provide elbowroom assembly
  • Options for 3 x PCI (PCI-E)Slot or 7 x low profile rear plate

► Rackmount Storage Chassis Model NO : U2010M3

Specification
Model NO. U2009H2000-12G-(SFF-8654)
Standard EIA-RS310D
Dimension
(W x D x H)		 481mm x 660mm x 2U
(18.9” x 26” x 2U)
Material Heavy-duty SGCC cold-rolled steel
Backplane SATA/SAS-12G slimline SFF-8654 Backplane(SGPIO option)
M/B Extended ATX ( 12” X 10.5”)
Drive bays 3.5”(or 2.5")hot-swap x 8 (SATA/SAS-12G) , 3.5” HDD x 1, 2.5” HDD x 1, Slim ODD x 1
Coolings 3 x 8cm hot-swappable cooling fans (middle)
Indicators Power LED, Fan Failure LED,  HDD LED
Controls Power on/off, system reset, USB port x 2,
Expansion 3 x PCI(PCI-E) Slot or 7 x low profile
Power Supply 2U single / Redundant  PSU
